  • Deutsch J1939 9pin Male+Female integrated to Open
  • Deutsch J1939 9pin Male+Female integrated to Open

Deutsch J1939 9pin Male+Female integrated to Open

  • Product Name:Deutsch J1939 9Pin Male+Female to Open
  • Part No.:CB1939-002
  • MOQ:100
  • Model:J1939 cable for Deutsch
  • Product description: Cable,Deutsch J1939 9pin male+female to Open. This product is accept the customized design,please provide the complete details to us,J1939,CANBUS,JBUS,OBDII cables, automotive cables Overmold Plasti
  • Inquiry

PRODUCT INTRODUCTION

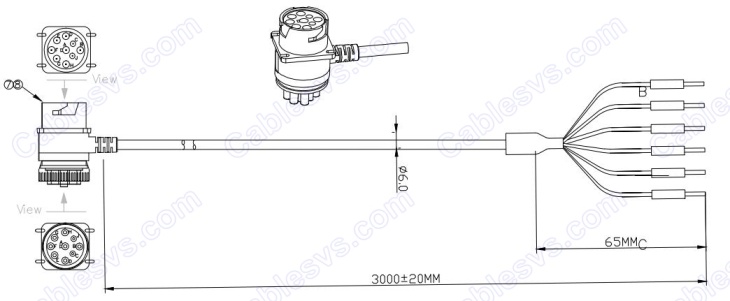

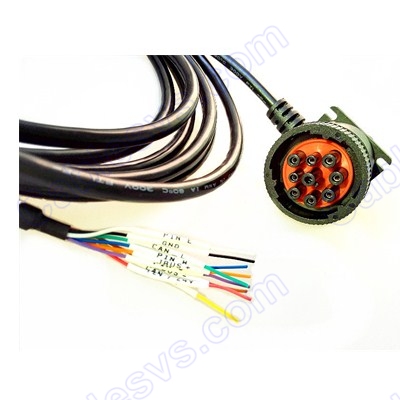

Deutsch J1939 9Pin Male+Female to Open.

J1939 9pin Male+Female integrated

CANBUS HIGH,CANBUS LOW

JBUS HIGH,JBUS LOW


18AWG for Pin A-GND

18AWG for Pin B-POWER

20AWG for PIN C-CANBUS HIGH (Twisted pair C&D)

20AWG for Pin D-CANBUS LOW (Twisted pair C&D)

20AWG for Pin F-JUBS + (Twisted pair F&G)

20AWG for Pin G-JUBS - (Twisted pair F&G)

Pin E,J,H spare





This is a new Deutsch J1939 9Pin connector upgraded from the standard Deutsch J1939 9pin connector.

This connector integrate J1939 male and female together, the total length is 6cm, it keeps the previous 4 screw holes and the lock on the female, the internal structure is same as previous,so it can be used in the standard Deutsch J1939 9pin device.

There are 2 strong points in this connector: it is more smaller and the wire connector out from the good angle so it is good for drivers;
The male and female is integrated together to connect a J1939 male connector, it can be used for other device.


We also sell our self-built connectors to other cable manufacturer in our industry.
More and more suppliers and customers choose to use our self-built connectors since we provide a pretty competitive price without compromising quality.

The color is customizable. We also build the J1708 6 Pin Rcpt and  J1939 9 Pin Plug and Rcpt. You are welcome to try cable made of  our self-developed J1939 Plug and Rcpt integrated connector which is smaller in size and compatible.
