Home  > OBDII to Automotive Brands Cable
  • OBD2 male to DB9 male with LEDs
  • OBD2 male to DB9 male with LEDs

OBD2 male to DB9 male with LEDs

  • Product Name: OBD2 male to DB9 male with LEDs
  • Part No.:
  • MOQ:100
  • Model:J1962 cable
  • Product description: Cable, OBD2 male to DB9 male with LEDs. We can provide samples for free,but will send to customer by freight collect.
  • Inquiry

PRODUCT INTRODUCTION

OBD2 male to DB9 male with LEDs.

Product Description

  • RoHS Compliant
  • All 16 pins connected
  • High-intensity LEDs (10,000 mcd+) instantly let the technician know if the diagnostic connector has power, even in direct sunlight
  • Mesh and foil shielding for superior durability and signal integrity
  • Twisted pairs (6-14 and 10-2) give the cable exceptional EMI noise immunity
  • Extra long strain relief protects the cable where it's most vulnerable

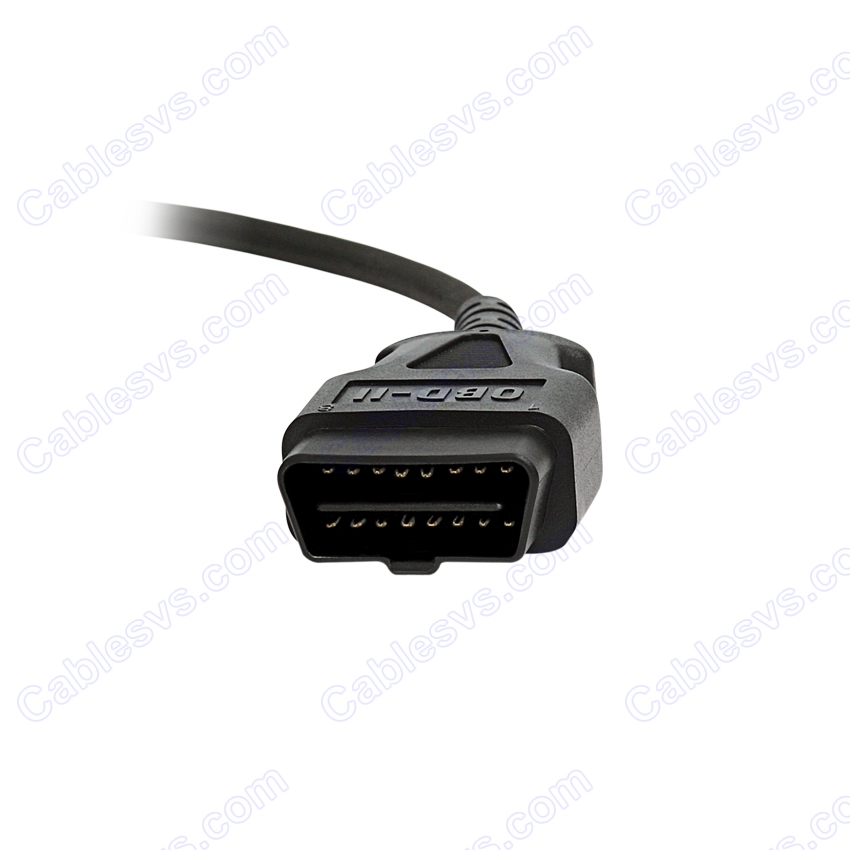

  • The SAE J1962M connector, engineered from the ground up, ensures compatibility with the widest range of vehicles

Pinout diagram

This heavy-duty cable is designed for the harsh conditions of automotive shops and emissions testing stations. Thick copper conductors are wrapped in aluminum foil to shield them against the EMI, and further protected by a layer of mesh, which acts like chain mail, resisting bending and tearing.

Differential OBD signals are routed through twisted pairs, ensuring the best signal integrity. Gold-plated terminals ensure good contact, even after repeated use. Extra long strain relief on the J1962M connector protects the cable where it's most vulnerable.

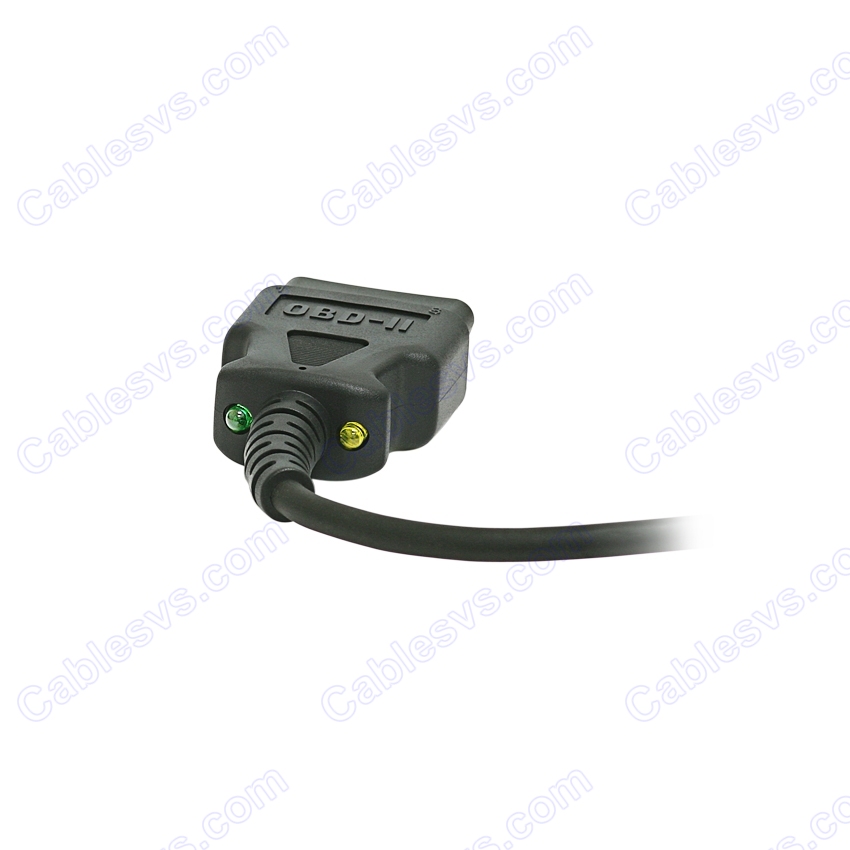

Built-in high intensity LEDs light up a brilliant green and yellow to instantly let the technician know whether the diagnostic connector has power, saving time and money. Unlike the regular LEDs, the lights in this cable are clearly visible even in direct sunlight.


Packaging&Shipping:

PE bag per pcs. Customized packaging is available.
Carton size: 46cm*30cm*26cm. Customized carton is available.
Shipping by air: 2-6days.
Shipping by vessel: 10-30days depend on the port of destination.


Our services:

1.Customers' samples, drawings(ACD,PDF,Pro-E,Soliwork) are acceptable.
2.OEM/ODM are acceptable.
3.Samples free for all customers,Whether you are new or regular customers. of course. It would be better less than 5pcs on basis of regular connectors.
We'll charge our customers for very special customized design if extra fee happened.
4.We have more than 10 years experience in dealing with the FAKRA SMB connector. We have a very professional team to reply all of your questions promptly.
5.Very strictly quality control, 100% inspection before delivery. 2 years warranty.
