> Automotive Connectors

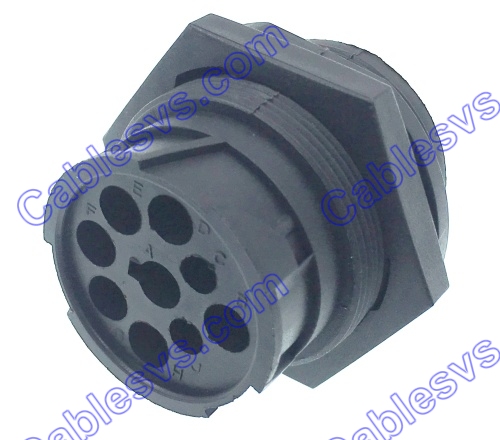

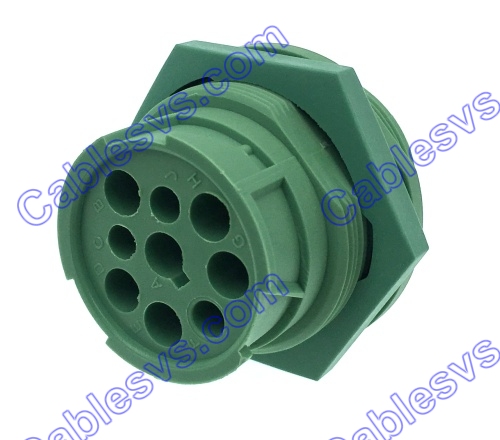

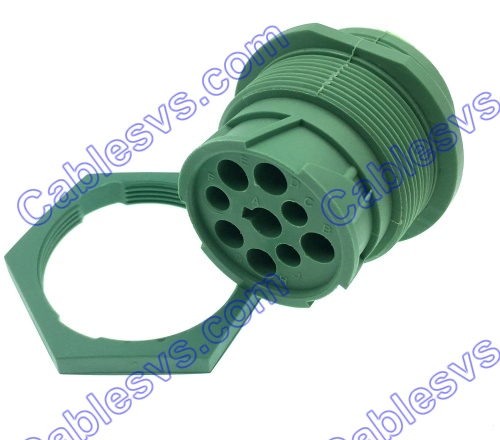

Deutsch,J1939 9pin male and female connector
- Product Name:Deutsch,J1939 9pin male and female connector
- Part No.:CB1939-010
- MOQ:100
- Model:SAEJ1939
- Product description: This is the 9-position Deutsch connector that mates with the J1939 diagnostic connector in heavy equipment. It includes the connector shell plus 6 crimp sockets. We can provide samples for free, bu
PRODUCT INTRODUCTION
Cable,Deutsch,J1939 9pin male and female connector.
This is the 9-position Deutsch connector that mates with the J1939 diagnostic connector in heavy equipment. It includes the connector shell plus 6 crimp sockets.
| Cavity | Description |
| A | Ground |
| B | Battery |
| C | J1939+ |
| D | J1939- |
| E | - |
| F | J1708+ |
| G | J1708- |
| H | - |
| J | - |
· Sae J1939 Connector,SAE J1939 Standards, Sae J1939 Protocol, J1939 Can Bus Cable, SAE J1939 Cable
