> J1939 to OBDII

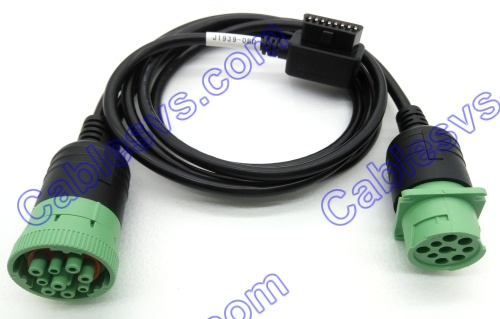

Heavy truck Green type 9 pin Y adatper connector to OBD 2 16 pin connector with auxillary cable J1939 Deutsch
- Part No.:CB2009-091
- MOQ:100
- J1939&J1708
- OBD2,J1962
- Product description: We are OEM manufacturer and have tooling for various vehicle interface connectors that we supply to OEM automotive customers world wide. Some are customized pass-thru type, Non-standard parts or low
PRODUCT INTRODUCTION
Heavy truck Green type 9 pin Y adatper connector to OBD2 16 pin connector with auxillary cable
J1939 Deutsch
Pin# Function, Wire Color
Pin A 1# Battery (-) GND Black 1/A
Pin B 2# Battery (+) Red 2/B
Pin C 3# CAN_H Yellow 3/C
Pin D 4# CAN_L Green White 4/D
Pin E 5# CAN_SHLD Red 5/E
Pin F 6# J1708 (+) Data Link (A) Green 6/F
Pin G 7# J1708 (-) Data Link (B) Brown 7/G
Pin H 8# Proprietary, Purple 8/H
Pin J 9# Proprietary, Blue 9/J
18 AWG, Shielded cable
J1962,OBD2,J1939,CANBUS,JBUS,OBDII cables, automotive cables
Overmold Plastic, Crimped cables, Automotive Non-standard parts
