  • Vgate Scan elm327

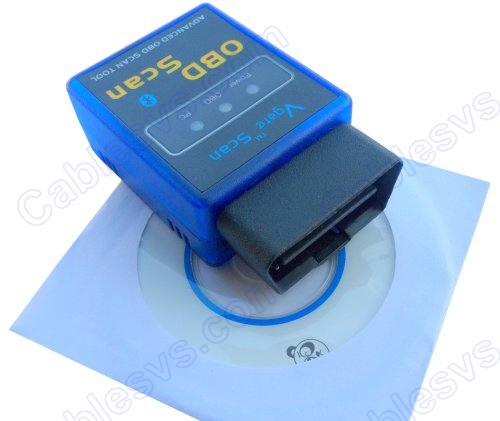

Vgate Scan elm327

  • Product Name:Vgate Scan elm327
  • Part No.:CB2008-012
  • MOQ:100
  • Model:ELM327
  • Product description: Features: Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the
  • Inquiry

PRODUCT INTRODUCTION

Display current sensor data, including:
-Engine RPM
-Calculated Load Value
-Coolant Temperature
-Fuel System Status
-Vehicle Speed
-Short Term Fuel Trim
-Long Term Fuel Trim
-Intake Manifold Pressure
-Timing Advance
-Intake Air Temperature
-Air Flow Rate
-Absolute Throttle Position
-Oxygen sensor voltages/associated short term fuel trims
-Fuel System status
-Fuel Pressure
-Many others...
Vehicle Coverage:

BMW(1996~2005)BMW3,BMW5,X5,Z3,Z4,Z8,740i,750i,BMW Mini,E60,745i,745Li,765Li.
Chrysler(1996~2008)
Daewoo-Lanos,Daewoo-Leganza,Daewoo-Nubira
FORD(1996~2008)
GM(1996~2008)
GEO prism, Honda/Acura,Hyundai,Isuzu,Jaguar
Kia,land Rover,Mazda,Mazda-Ford,Ford
Merceds,Mitsubis
Nissan,PROSCHE
Subaru,Suzuki,Volvo,Rolls Royce 4,etc

Multi-Protocol Support:

SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)

Software Included:

Scantool_net113win (Full Version)
EasyOBDII V2.2 (Free Version)
OBD2Spy (Demo Version)
ScanMaster-ELM (Demo Version)
WOBDCRAZY (Demo Version)
This hardware can match many other software still!But most of them are not free!
Works for Windows98/ME/2000/XP/Vista & Win7
This tool does not match abs and airbag system!
Bluetooth paircode: 1234
Main Control Chip:PIC18F2480

Package Includings:

1 x Mini Bluetooth ELM327 V1.5 OBDII OBD2 Diagnostic Scan Tool
1 x CD-ROM
