Wire harness molex 430200400 to open
- Wire harness
- Molex or equivalent
- Pitch3.0

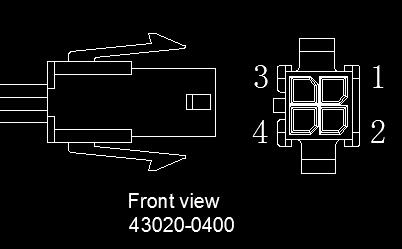

- 430200400
- Product description: J1962,OBD2,J1939,CANBUS,JBUS,OBDII cables, automotive cables Overmold Plastic, Crimped cables, Automotive Non-standard parts
PRODUCT INTRODUCTION
Product Description:

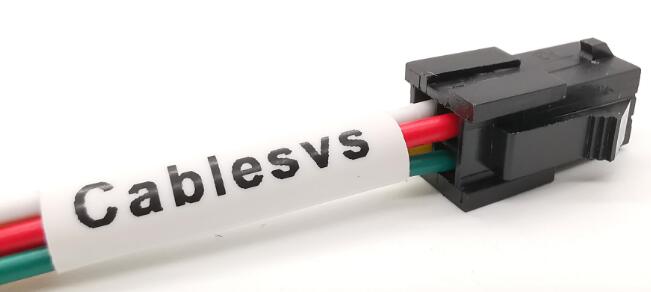

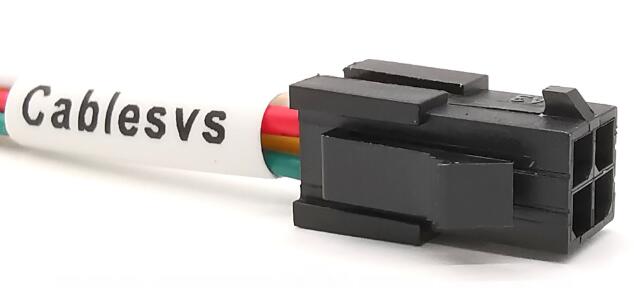

Ul1007 wires with Molex 430200400,
Testing:
100% test short and open and miss wire
Contact Resistance: 2Ω Max
Insulation resistance:5MΩ Min
Withstanding voltage: 300V DC
All goods will be
100% inspected before dispatched.
Terminal: 430310001
Maximum wire gauge: 20 AWG
Minimum wire gauge: 24 AWG
Accept to customize products,just send us samples
and drawing about the products you need.
