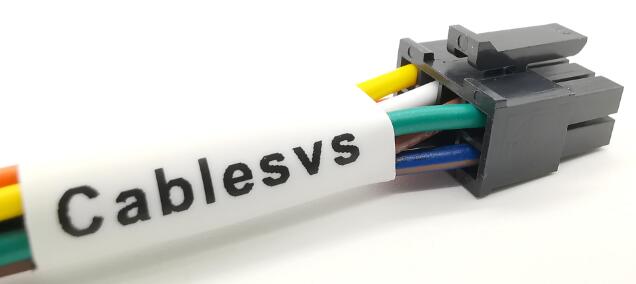

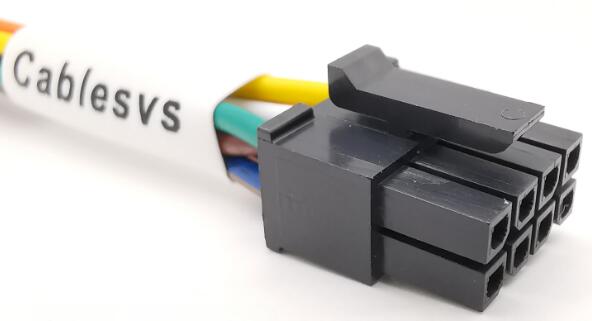

Wire harness molex 430250800 to open
- Wire harness
- Molex or equivalent
- Pitch3.0

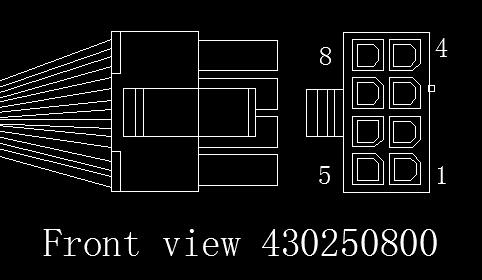

- 430250800
- Product description: Wire harness molex 430250800 to open
PRODUCT INTRODUCTION
Product Description:
Ul1007 wires with Molex 430250800,
Terminal: 430300001
Maximum wire gauge: 20 AWG
Minimum wire gauge: 24 AWG
Testing:
100% test short and open and miss wire
Contact Resistance: 2Ω Max
Insulation resistance:5MΩ Min
Withstanding voltage: 300V DC
Accept to customize products,just send us samples and drawing about the products you need.
